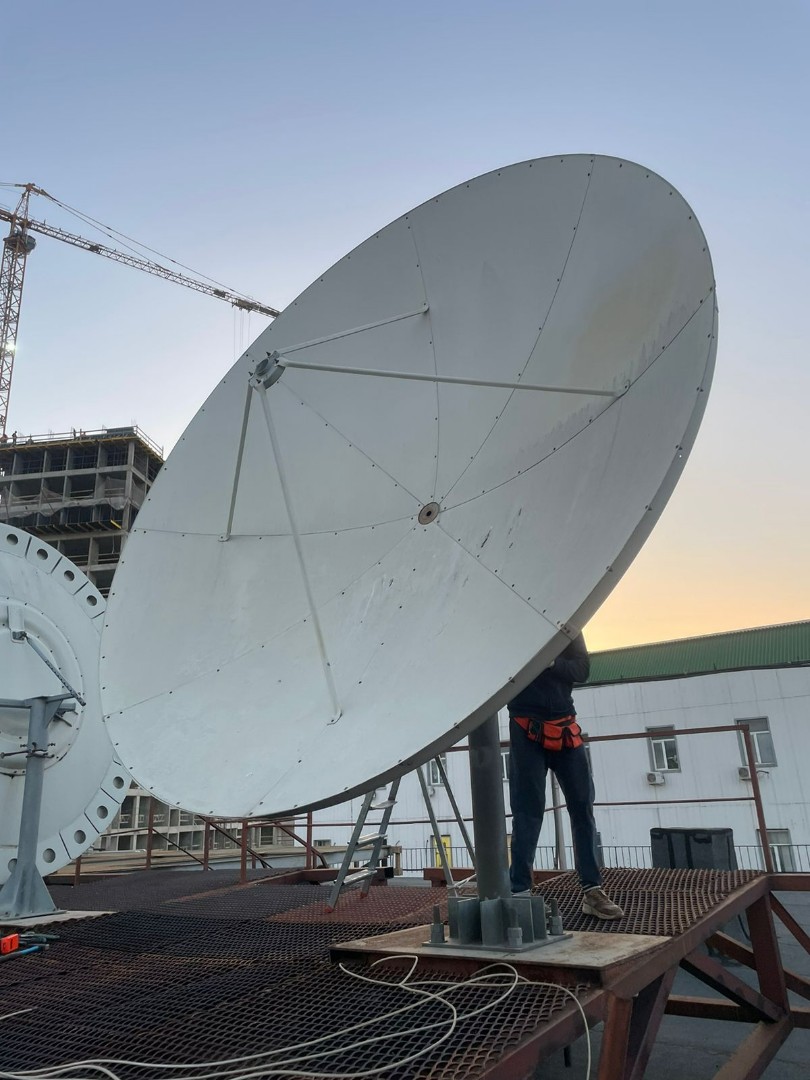

Спутниковая антенна Patriot 3.1 б/у в отличном состоянии. Геометрия не повреждена.
|
Specifications |
C-Band |
Ku-Band |
| Frequency | 3.7-4.2 GHz | 10.95-12.75 GHz |
| Rx Gain | 40.4 dBi | 49.7 dBi |
| Rx 3 dB beamwidth | 1.7 | 0.6 |
| Cross Polarization | >35 dB | >35 dB |
| Beamwidth | 1.72° | .55° |
| VSWR | 1.3:1 | 1.3:1 |
| Antenna Noise @ 30°EL | 28 K | 34 K |
| Typical G/T (Midband) | ||
| with 50 K LNA | 20.9 dB/K | --- |
| with 70 K LNA | --- | 29.6 dB/K |
| Feed Interface | CPR229 | WR75 |
|
Mechanical Specifications |
Az-El Head |
Polar |
| f/D Ratio | .336 | .336 |
| Focal Distance | 41.0 in | 41.0 in |
| Azimuth Travel | 360° Continuous | 120° Arc |
| Site Latitude | 0° to 90° | 10° to 60° |
| Polarization Travel | ±90° | ±90° |
| Mast Pipe Size Required | Az-El 5.5" O.D. | Polar 4" O.D. Navigator 6.625" O.D. |
| Total Weight | 385 lbs | 385 lbs |
| Crate Dimensions | 68x48x19 in | 68x48x19 in |
| Units per 40 ft Container | 96 units | 96 units |
|
Navigator |
||
| F/D Ratio | .366 | |
| Focal Distance | 41.0 in / 104.2 cm | |
| Azimuth Travel | 120° Arc | |
| Elevation Travel | 20° to 90° | |
| Polarization Travel | ±90° | |
| Total Weight | 590 lbs | |
| Crate Dimensions | 68x48x19 in | 72x48x19 in |
| Units per 40 ft Container | 72 units | |
| Environmental Specifications | ||
| Wind Load | Operational | 60 mph |
| Survival | 125 mph | |
| Temperature | Operational | -40° to 140°F -40° to 60°C |
| Survival | -60° to 180°F -51° to 82°C |
|
| Radial Ice | Survival | 1 in or 1/2 in + 60mph |
| Shock & Vibration | As occurred during on shipment of air, truck or | |
